Rear Coil Over Kit | QA1 18 Way Single Adjustable Shocks & 150# Springs

Buy Now

Price: 799.00 USD

Rear Coil Over Kit | QA1 18 Way Single Adjustable Shocks & 150# Springs

Application: 1982-2002 GM F-Body – Camaro & Firebird

Part# 736-QSA-150

The Spohn Performance single adjustable rear coil over conversion kit for the 1982-2002 GM F-Body Camaro and Firebird.

This kit is based on the QA1 Proma Star 18 way single adjustable aluminum coil over shocks:

18 Positions of Shock Adjustment: Simultaneous compression and rebound adjustment with 18 valving options. Unique to QA1, one knob changes both compression and rebound valving simultaneously, allowing total suspension control in one easy-to-reach location.
Deflective Disc Valving: Advanced shock technology, increased sensitivity in valving response, control and consistency.
Precision Machined Piston with PTFE Piston Band: Creates accurate piston to cylinder wall seal, improves valving consistency and increases durability.
5/8″ Centerless Ground, Hard Chrome Plated, Solid Piston Rod: Precision surface, eliminates piston rod flex increasing valving consistency.
Forged, Machined Aluminum Body: Lighteweight, stronger than billet. Bright anodized for unmatched durability and great appearance.
Three Step Sealing System: Advanced aerospace material, exclusive double lip seal design and wiper seal eliminate seal drag and dirt intrusion.
100% Dyno Tested and Serialized: Assures consistency in production and performance.
Spring Mounting Hardware Included: Aluminum spring cap, spring seat, and locking ring included.
Shock Mounting: Exclusive Teflon/Kevlar race bearings for smooth bind-free operation.
Ride Height Adjustment: Set your ride height to the exact height you want it to be.

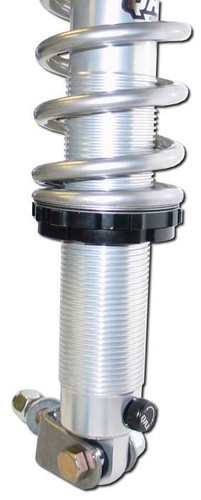

The Spohn Performance rear coil over conversion kit for the 1982-2002 GM F-Body Camaro and Firebird ships to you fully assembled (as pictured) and ready to install. All you need to do is install (welding required) the top reinforcement plate and then bolt the assembly into place, it’s that simple!

18 Way Single Adjustable Rear Coil-Over Kit Includes:

(2) 18 Way Single Adjustable Coil Over Shocks
(2) 2.5″ i.d. Coil Over Springs
(2) CNC Laser Cut 1/4″ Steel Top Reinforcement Plates
(4) Shock Mounting Clevises
Grade 8 Mounting Hardware
Spanner Wrench Set
Torrington Thrust Washers and Bearings for Spring Seats

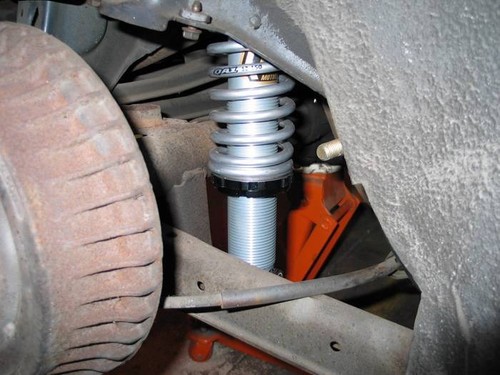

Remove your factory rear shocks and coil springs. Our reinforcement plate lays in to the entire area of the upper factory coil spring pocket, MIG weld in to place. Bolt the rear coil over assembly to the factory mounts on the rear axle housing and through the top reinforcement plate and through the factory mounting hole through the floor pan and you’re done!

Spring Rates:

This kit includes 150# springs. Look at the available spring rates and their recommended applications below. If you would like a different spring rate then copy the kit part number and paste it into the search field in our eBay Store to order the kit with your desired spring rate.
