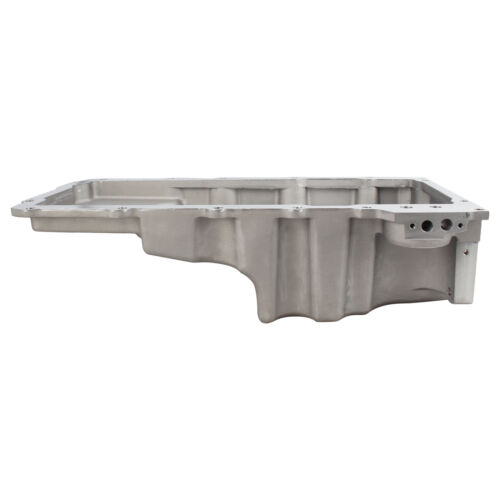

Engine Swap LOW PROFILE Oil Pan Retro For LS1 LS2 LS3 LSX 6.2 6.0 5.3 4.8 G-Body

 Buy Now


Fast Shipping from USA！

♦Kindly Notice♦

❗  Please Confirm if the Part Number, Fitment Details and Listed Pictures above same as your need before purchasing.

❗   A minor difference in part design may result in a different model. Please COMPARE our listed pictures with your old parts CAREFULLY.

❗  Contact us first, if you have any question or problem. We will back to you soon.

Please use the Ctrl+F to search the Part Number / Models that you need.

Description:

🆗 Brand New & High Quality

🆗 Tested and Works before shipping.

Features:

Gen III/IV blocks

Fits for LS1/LS2/LS3 4.8 5.3 5.7 6.0 6.2

Designed for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube

Ideal for Camaro/Firebird (’67-’69), Nova/Apollo/Ventura/Omega (’82-’92), GM A-body (’64-’72), G-body (’78-’87), and F-body (’82-’92) applications

Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application

Fits most LS engines, except LS7 or LS9 dry sump applications

Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031, respectively takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter

Specifications:

Sump Style: Wet

Sump Location: Rear

Sump Depth: 5.46″

Maximum Stroke: 3.62″

Oil Filter Location: Stock

Sump Oil Capacity: 5.7 Quarts

Total Oil Capacity: 6.2 Quarts with Stock Filter

Baffled: Yes

Windage Tray: Not Included

△ This is Non-Original Aftermarket Parts, please check the pictures or size for compatibility before ordering it.

△ Not including Installation instruction. Professional Installation is Highly Recommended.

Package includes (as pictured):

Oil Pan Gasket

Oil Pickup Tube

Drain Plug

Oil Filter Stud

Oil Passage Cover

Mounting Hardware

Instruction is not included.
