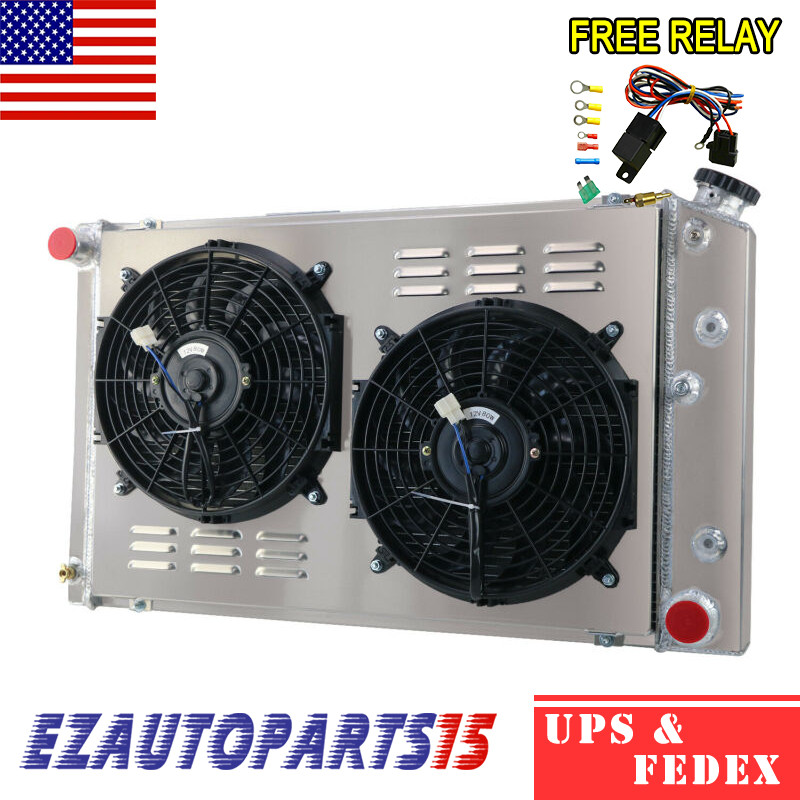

For 1978~1987 Monte Carlo G-Body Chevy 1970-1981 Camaro 3Row Radiator Shroud Fan

Buy Now

Price: 220.98 USD

For 1978~1987 Monte Carlo G-Body Chevy 1970-1981 Camaro 3Row Radiator Shroud Fan

We are professional manufacturers of performance radiators, inter coolers, oil coolers, and exhaust pipe.

We have maintained a strong reputation in the industry for many years.

Package Include：

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12″ Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Size:

Brand:ASI Performance

Condition:New

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Petock Drain:OEM style brass petcock drain

Radiator Cap:CNC machined filler neck and cap

Core size: 16 6/7″ H x 26 2/9″ W

Overall Size: 18 1/2″ H x 31 5/7″ W

Inlet Diameter: 1-1/2″

Outlet Diameter: 1-4/7″

Trans Cooler:Included φ32*215*G1/4（Z)

Mount Type: Saddle

Features：

1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish

2.Brazed core technology to guarantee optimum performance and dependability

3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it’s hard and durable

4.Billet Aluminum CNC machined fill neck rugged and durable

5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6.OEM style brass petcock drain much better than other plastic one on eBay

7.Carefully crafted to exceptional OE standards for precise fit.

Fan Details：

Aids to Cool the Entire Engine Bay, including Radiator, A/C System, Intercooler, Oil System, and Transmission

Performance JDM Spec. Racing Design

OE Fitment or Replacement, Push or Pull Type

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 10.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpma

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180’F turn-on temperature, 165’F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Description：

Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Fitment：

BUICK APOLLO 1975

BUICK CENTURY 1977-1981

BUICK ESTATE WAGON 1977-1978

BUICK REGAL 1980-1987

BUICK SKYLARK 1975-1979

CADILLAC ELDORADO 1979

CADILLAC SEVILLE 1976

CHEVROLET BLAZER 1974

CHEVROLET C10 PICKUP 1974-1984

CHEVROLET C10 SUBURBAN 1973-1979

CHEVROLET C15 1986

CHEVROLET C20 PICKUP 1973-1986

CHEVROLET C20 SUBURBAN 1973-1975

CHEVROLET C30 PICKUP 1973-1985

CHEVROLET CAMARO 1971-1981

CHEVROLET CAPRICE 1980-1989

CHEVROLET EL CAMINO 1978-1986

CHEVROLET G10 1972-1984

CHEVROLET G20 1972-1984

CHEVROLET G30 1974-1984

CHEVROLET IMPALA 1980-1984

CHEVROLET K10 PICKUP 1973-1981

CHEVROLET K10 SUBURBAN 1973-1978

CHEVROLET K20 PICKUP 1974-1986

CHEVROLET K20 SUBURBAN 1975-1979

CHEVROLET K30 PICKUP 1973-1985

CHEVROLET K5 BLAZER 1977-1981

CHEVROLET MALIBU 1979-1983

CHEVROLET MONTE CARLO 1978-1987

CHEVROLET NOVA 1975-1978

CHEVROLET P10 1976-1978

CHEVROLET P20 1974-1989

CHEVROLET P30 1974-1988

CHEVROLET R20 PICKUP 1988

CHEVROLET R30 PICKUP 1988

CHEVROLET V30 PICKUP 1988

GMC C15 PICKUP 1975-1978

GMC C15 SUBURBAN 1975-1978

GMC C15/C1500 PICKUP 1973-1974

GMC C1500 PICKUP 1979-1983

GMC C1500 SUBURBAN 1979

GMC C25 PICKUP 1976-1978

GMC C25 SUBURBAN 1976-1978

GMC C25/C2500 PICKUP 1974

GMC C2500 PICKUP 1980-1984

GMC C2500 SUBURBAN 1979

GMC C35 Pickup 1976-1978

GMC C35/C3500 PICKUP 1974

GMC C3500 PICKUP 1980-1985

GMC CABALLERO 1978-1987

GMC G15 1975-1978

GMC G15/G1500 VAN 1973

GMC G1500 1979-1983

GMC G25/G2500 VAN 1972-1974

GMC G2500 1980-1984

GMC G35/G3500 VAN 1972-1974

GMC G3500 1979-1983

GMC JIMMY 1974-1980

GMC K15 PICKUP 1976-1978

GMC K15/K1500 PICKUP 1973-1974

GMC K15/K1500 SUBURBAN 1973-1974

GMC K1500 PICKUP 1980-1983

GMC K25 PICKUP 1976

GMC K25 SUBURBAN 1975

GMC K25/K2500 PICKUP 1973-1974

GMC K25/K2500 SUBURBAN 1974

GMC K2500 PICKUP 1981-1986

GMC K35/K3500 PICKUP 1973-1974

GMC K3500 1979-1986

GMC P15 1975-1976

GMC P15/P1500 VAN 1973-1974

GMC P25 1975-1976

GMC P2500 1980-1987

GMC P35 1975-1978

GMC P35/P3500 VAN 1974

GMC P3500 1981-1988

GMC P4500 1979-1980

GMC R2500 PICKUP 1988

GMC R3500 PICKUP 1988

GMC V3500 PICKUP 1988

OLDSMOBILE 98 1980-1983

OLDSMOBILE CUTLASS 1978-1981

OLDSMOBILE CUTLASS SALON 1986

OLDSMOBILE CUTLASS SUPREME 1979-1988

OLDSMOBILE OMEGA 1975-1978

PONTIAC BONNEVILLE 1980-1986

PONTIAC CATALINA 1981

PONTIAC GRAND AM 1978-1980

PONTIAC GRAND LEMANS 1978-1982

PONTIAC GRAND PRIX 1978-1986

PONTIAC LEMANS 1976-1981

PONTIAC PARISIENNE 1976-1984

PONTIAC PHOENIX 1977

PONTIAC VENTURA 1975-1977
